| สถานที่กำเนิด: | หนิงโปจีน(แผ่นดินใหญ่) |
| ชื่อแบรนด์: | FLUIDAC or OEM |
| ได้รับการรับรอง: | ISO9001 |
| หมายเลขรุ่น: | SLT-16-10-PA |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| รายละเอียดการบรรจุ: | กล่อง, กล่อง, กล่องไม้, พาเลท |
| เวลาการส่งมอบ: | ภายใน 20 วันหลังจากได้รับการชำระเงินหรือเงินมัดจำ |
| เงื่อนไขการชำระเงิน: | TT Advance/เงินฝาก 30%, 70% โดยสำเนา Bill oflading, Western Union, Paypal |
| สามารถในการผลิต: | 1,000 ชิ้นต่อเดือน |
| ขนาดรู (มม.): | 6 มม.~25 มม | รูปแบบการเคลื่อนไหว: | ดับเบิ้ลแอคชั่น |
|---|---|---|---|
| ช่วงแรงดันใช้งาน: | 0.15 ~ 1.0mpa | สื่อการทำงาน: | อากาศอัดแห้ง |
| วัสดุ: | อลูมิเนียมอัลลอยด์ | โรคหลอดเลือดสมอง (มม.): | 10.20.30.40.50.80.100.125.150.200 |
| เน้น: | Mini sliding pneumatic cylinder,Double-acting air cylinder SLT series,Pneumatic cylinder SLT-16-10-P-A |
||

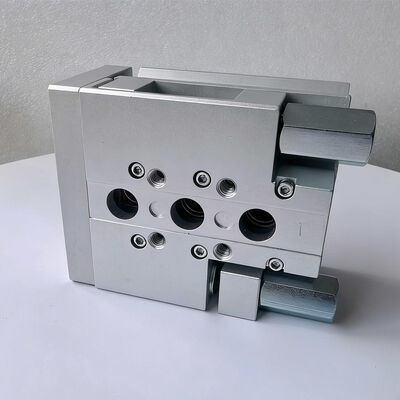

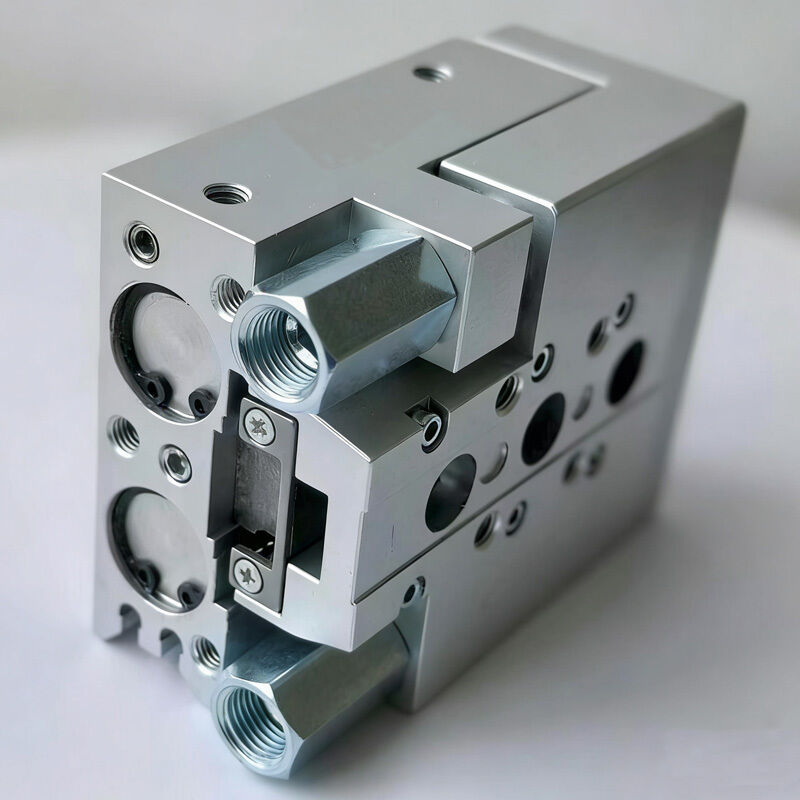

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
SLT Series sliding double acting Pneumatic air cylinder Bore size 6mm-25mm
SLT -16 - 80 - P - A
└─→ Type: Double acting Mini slide cylinder
└─→Piston Diameter (mm):6.10.16.20.25
└─→Stroke (mm): 10.20.30.40.50.80.100.125.150.200
└─→Cushion Type: Elastic cushion, Non-adjustable
└─→Position Sensing: Via Sensor
![]()
| Piston Dia. | Width (W) | Height(H) |
| 2*6mm | 35 | 20mm |
| 2*10mm | 50 | 30mm |
| 2*16mm | 66 | 40mm |
| 2*20mm | 85 | 49mm |
| 2*25mm | 104 | 60mm |
Operating and Environmental Conditions
| Piston Diameter ⌀ [mm] | 6 | 10 | 16 | 20 | 25 |
| Working Medium | Dry compressed air, lubricated or unlubricated | ||||
| Operating Pressure [bar] | 1.5 ... 10 | 1 ... 10 | |||
| Ambient Temperature¹⁾ [°C] | -20 ... +60 | ||||
| Corrosion Resistance Class CRC²⁾ | 1 | ||||
![]()
Pneumatic Sliding cylinder,Air cylinder, Linear actuator,Gas cylinder,Double shaft air cylinder,Twin rod Pneumatic cyinder,Parallel air cylinder, compact air cylinder,table turnable air cyinder,rotary air cylinder,Rotary table cyinder, swivel table cylinder
