สถานที่กำเนิด: | Ningbo China(Mainland) |
ชื่อแบรนด์: | FLUIDAC or OEM |
ได้รับการรับรอง: | ISO9001 |
หมายเลขรุ่น: | HPV-23-JD-8P2 |
จำนวนสั่งซื้อขั้นต่ำ: | 5 piece |
---|---|
ราคา: | USD10-- |
รายละเอียดการบรรจุ: | Boxes, Cartons,Wooden cases,Pallets |
เวลาการส่งมอบ: | Within 20 days after receiving payment or deposit |
เงื่อนไขการชำระเงิน: | TT ล่วงหน้า / เงินฝาก 30%, 70% โดยสำเนาใบเรียกเก็บเงิน, Western Union, Paypal |
สามารถในการผลิต: | 10000 Pieces Per month |
ความดันสูง: | 2.4MPa | ขนาดพอร์ต: | G1/4 ถึง G1/2 |
---|---|---|---|
พิมพ์: | สองตำแหน่ง สามทาง | แรงดันคอยล์: | 12VDC|24VAC|24VDC|110VAC|220VAC |
วัสดุ: | ทองเหลือง | รูปแบบการเคลื่อนไหว: | ilot Operated, ประเภท Inner Pilot และ External Pilot |
ชื่อผลิตภัณฑ์: | โซลินอยด์ทำงานวาล์ว | ||
แสงสูง: | โซลินอยด์วาล์วควบคุม,วาล์วควบคุมลม,โซลินอยด์วาล์วควบคุมทิศทาง 2.4Mpa |

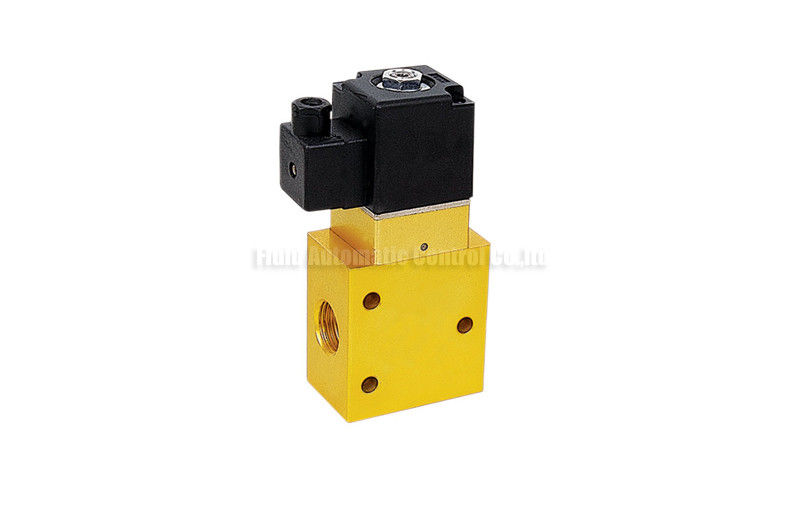

2.4Mpa Solenoid Operated Directional Control Valve G1/8 External Pilot Operated
Two positon three way 2.4Mpa high pressure directional control solenoid valve with External Pilot operated size G1/4 ~G1/2 e.g HPV-23-JD-8P2
Quick Detail:
* HPV series high pressure directional control solenoid valve
* High pressure up to 2.4MPa
* Pilot Operated,Inner Pilot type and External Pilot for option
* Port size from G1/4 to G1/2,External Pilot connecting port size G1/8
* Stop type structure ensure High stability
* Two position Three way function pattern
* Safety and long life service cycle
Applications:
HPV series high pressure solenoid valve with stop structure design,high stability,safety already used maturely and widely in the High pressure equipment like the blowing bottle pneumatic system,especially applicable to the big Volume,special shape PET bottle production equipment
External Pilot can separte the pilot pressure with the working equipment pressure,Using the Outside pressure to control for example the Vacuum system.
Specifications:
ORDERING CODE |
|||||
HPV |
23 |
JD |
8 |
AC220V |
P2 |
Type |
Function Type |
Structure type |
Orifice Size |
Voltage |
Pliot Operated Pattern |
HPV:HPV Series High Pressure Directional Control Valve |
23:Two Position Three Way |
Electro-control Stop type |
08:G1/4" |
AC220V:220VAC |
Blank:Inner Pilot Operated |
AC110V:110VAC |
|||||
15:G1/2" |
DC24V:24VDC |
P2:External Pilot Operated |
|||
DC12V:12VDC |
|||||
AC24V:24VAC |
SPECIFICATION |
||||
Model No |
HPV-23-JD-08 |
HPV-23-JD-08-P2 |
HPV-23-JD-15 |
HPV-23-JD-15-P2 |
Position And Way Numbers |
Two Position-Three Way |
|||
Working Medium |
Compressed 40 Micron Filtered Air |
|||
Motion Pattern |
Inner Pilot |
External Pilot |
Inner Pilot |
External Pilot |
Structure Type |
Stop type |
|||
Working Pressure |
0.25~2.4MPa |
|||
Operating Temperature |
5~50℃ |
|||
Orifice Size (mm) DN |
8 |
15 |
||
Port Size |
G1/4" |
G1/4", External Pilot connect G1/8" |
G1/2" or G3/8” |
G1/2"Or G3/8”, External Pilot connect G1/8" |
Pneumatic valve,High pressure solenoid valve,External Pilot Operated solenoid valve
